Hardware - SVBox IoT 1.0

Hardware Requirements

• BOM List 1.0.1 (xlsx ods)
• Tools List 1.0.0 (xlsx ods)

Wiring

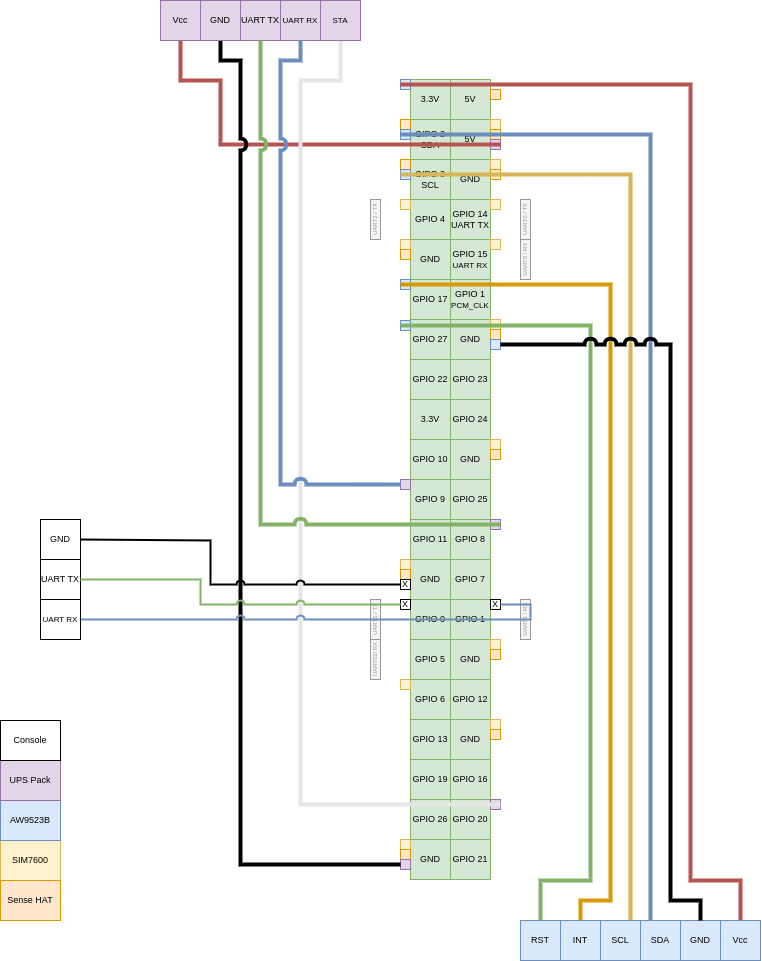

• Schema Raspberry Pi Headers

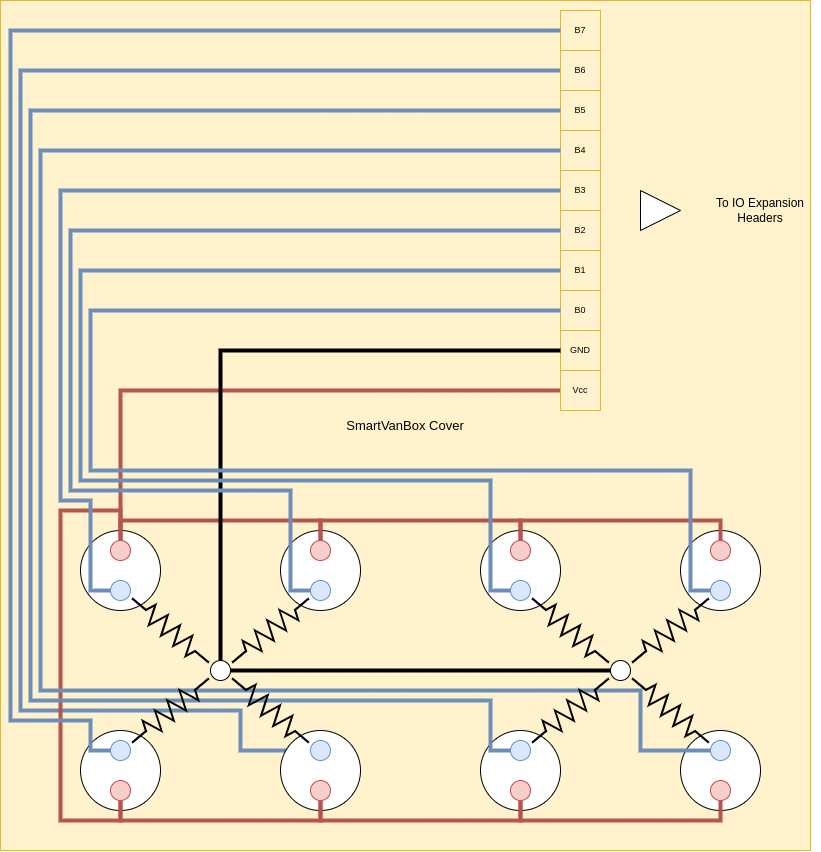

• Schema Cover's buttons

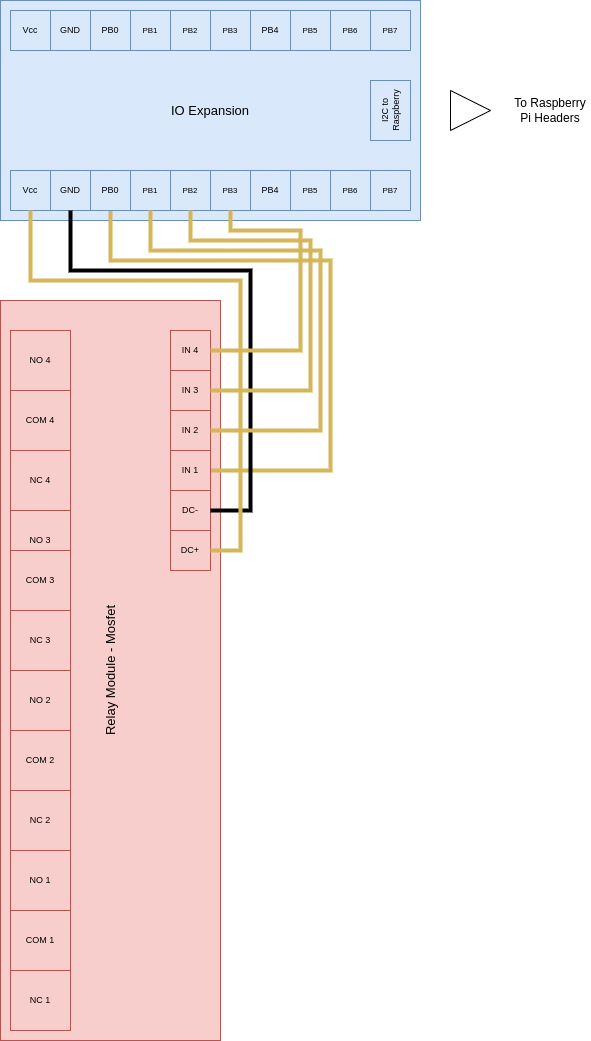

• Schema GPIO Exp 2 Relays

Cases & 3D Models

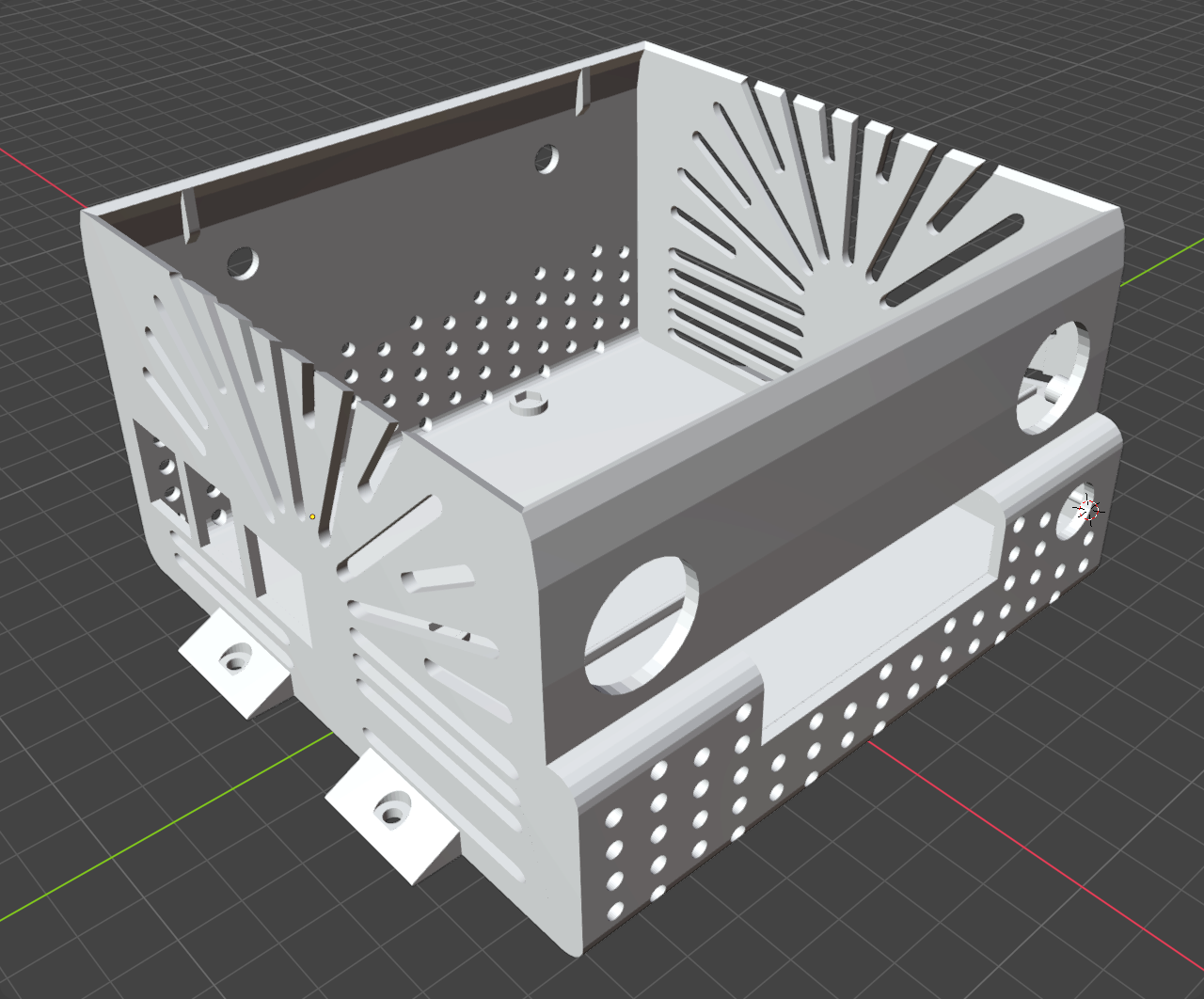

• Base: The main body of the SmartVanBox
  • Base2.stl: The Base 3d Model
  • Render: Render of the Base
  • Base2.3mf: 3mf file for Cura with print settings

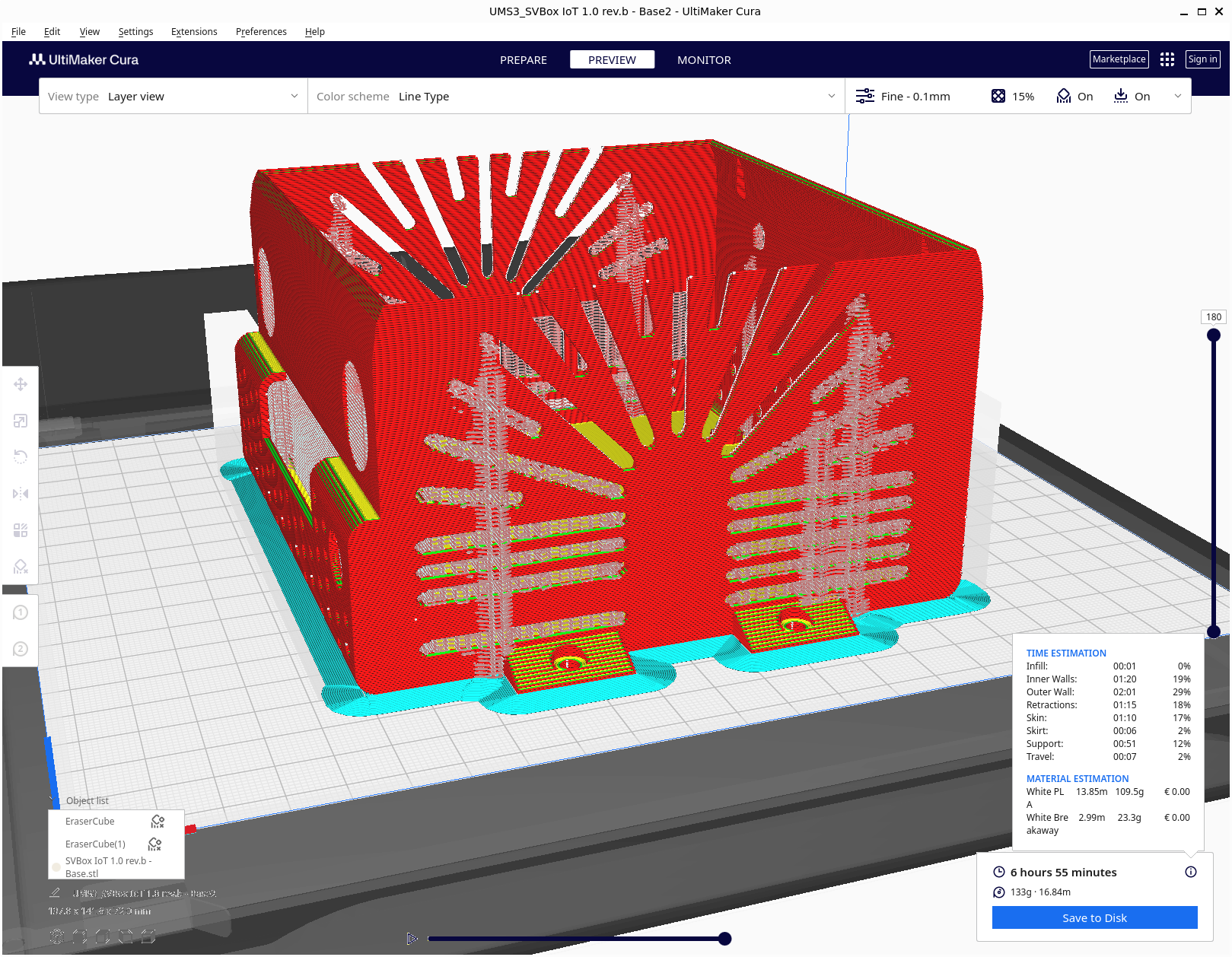

  • Cura Sliced: Render of the Base sliced in Cura
  • Base2 - S5.3mf: 3mf file for Cura with print settings for S5
  • Base2 - S5.ufp: ufp file from Cura with print settings for S5
• Panel: A panel to be placed inside the base, housing components like the relay module
  • Panel.stl: The Panel 3d Model

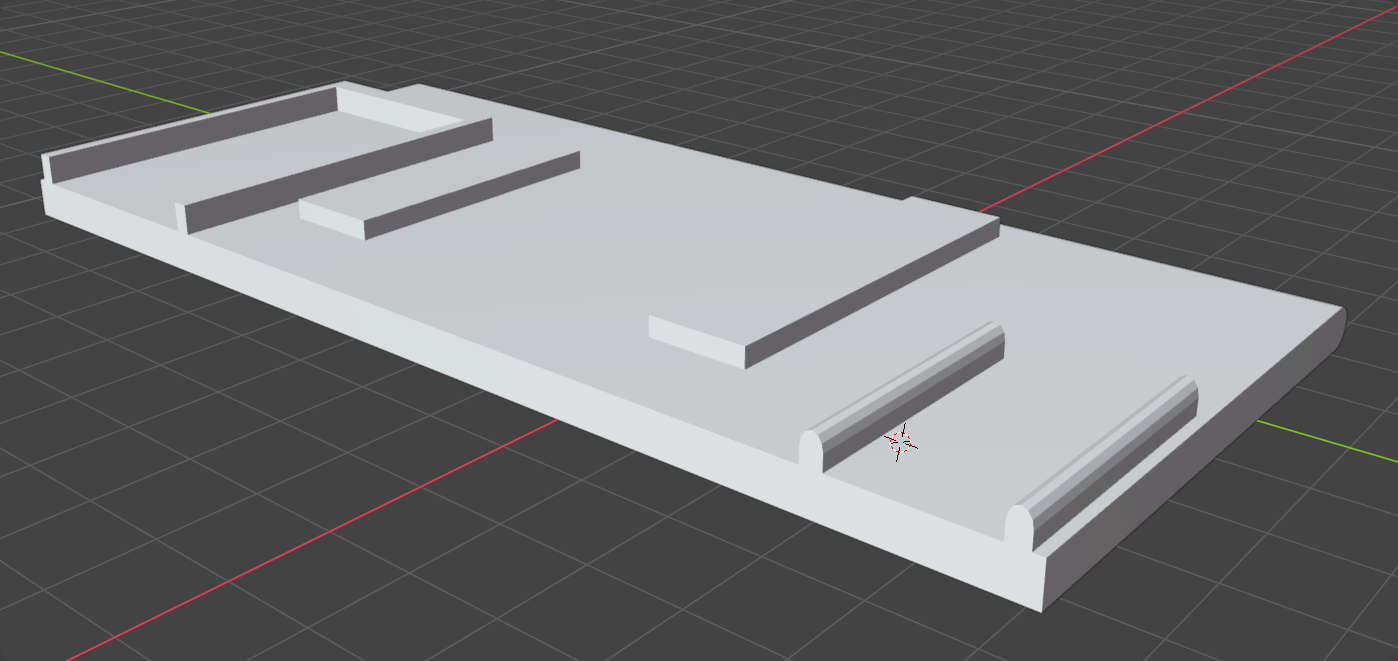

  • Render: Render of the Panel
  • Panel.3mf: 3mf file for Cura with print settings

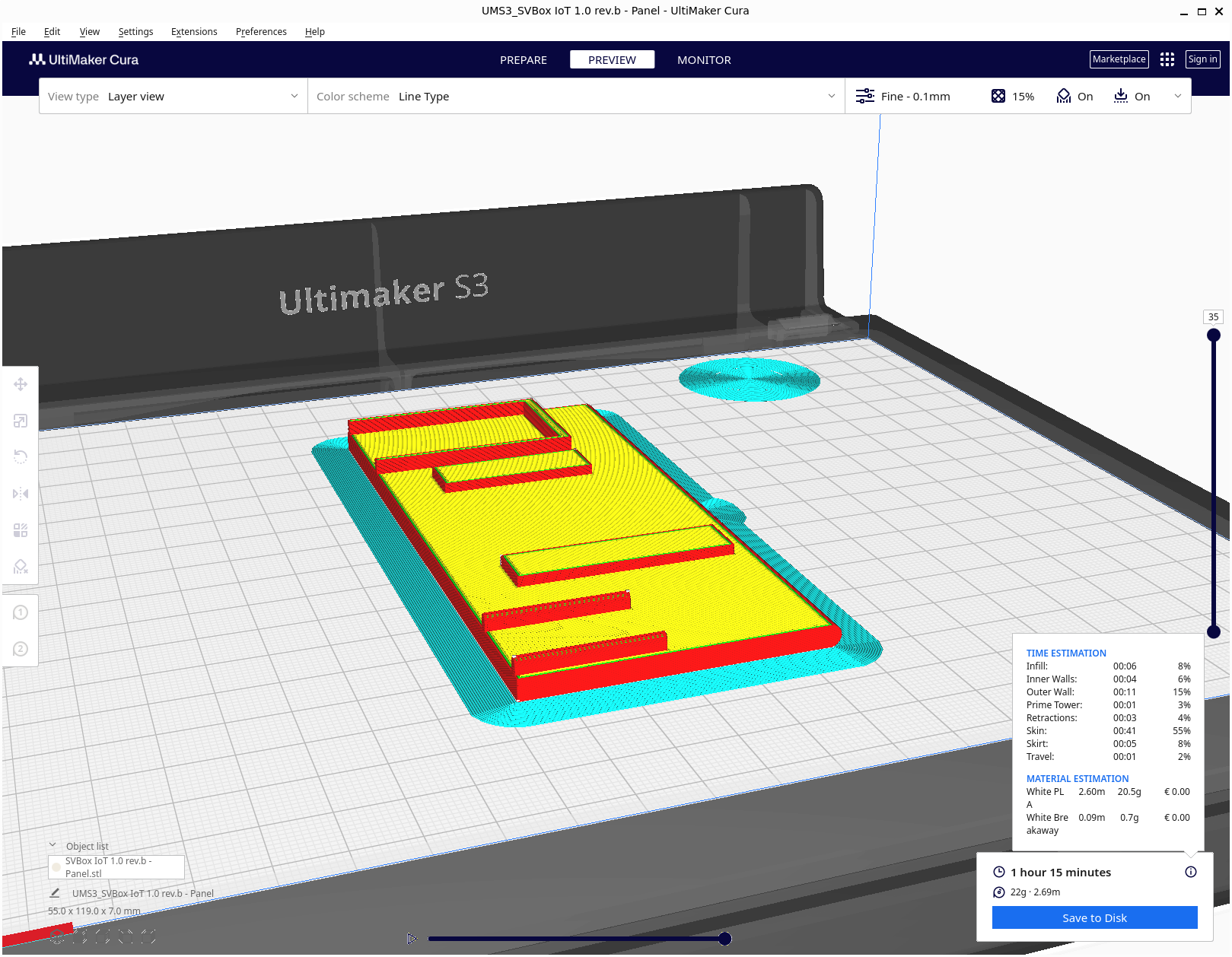

  • Cura Sliced: Render of the Panel sliced in Cura
• Cover: The lid to close the SmartVanBox and hold the buttons
  • Cover.stl: The Cover 3d Model

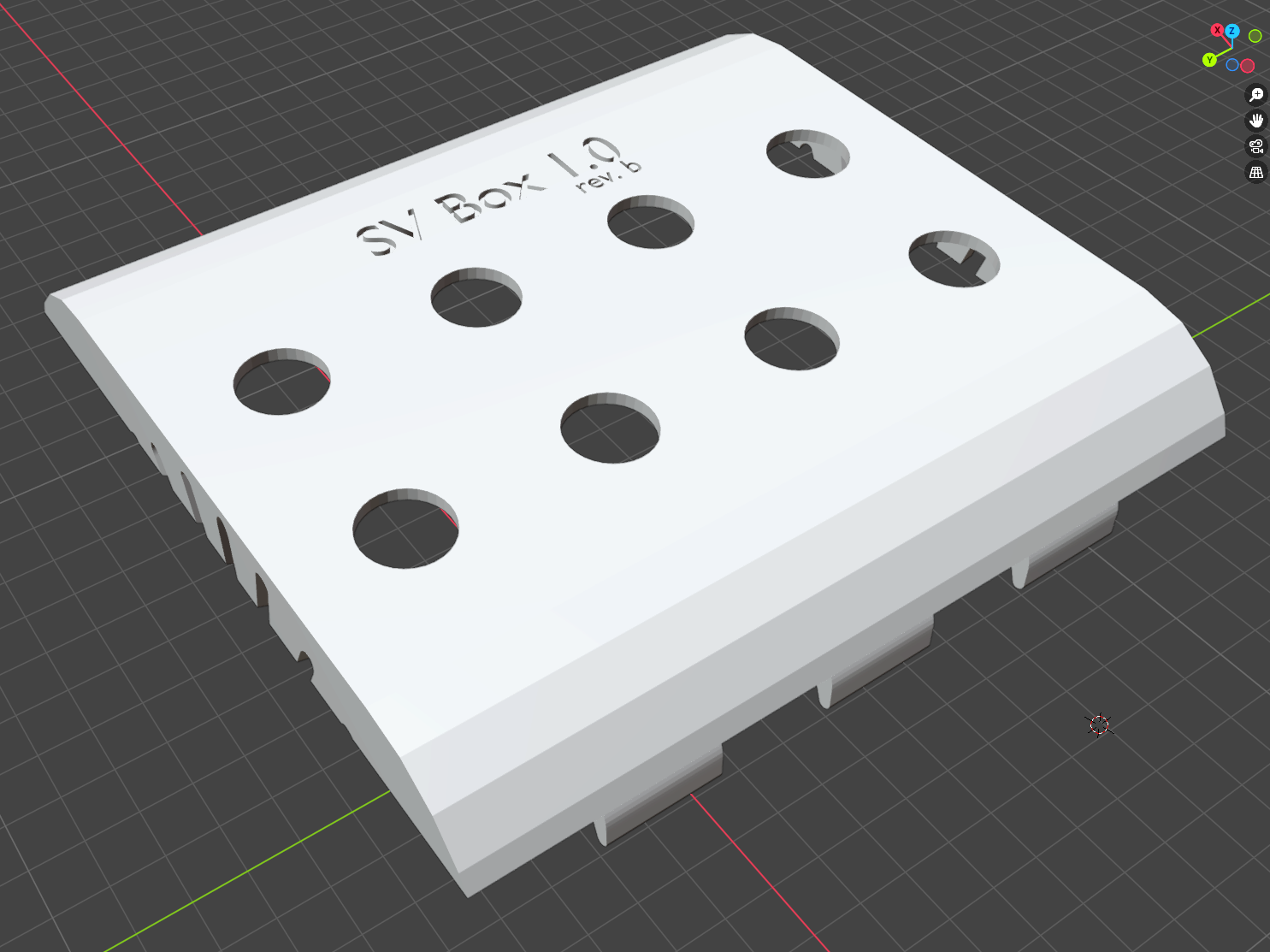

  • Render: Render of the Cover
  • Cover.3mf: 3mf file for Cura with print settings

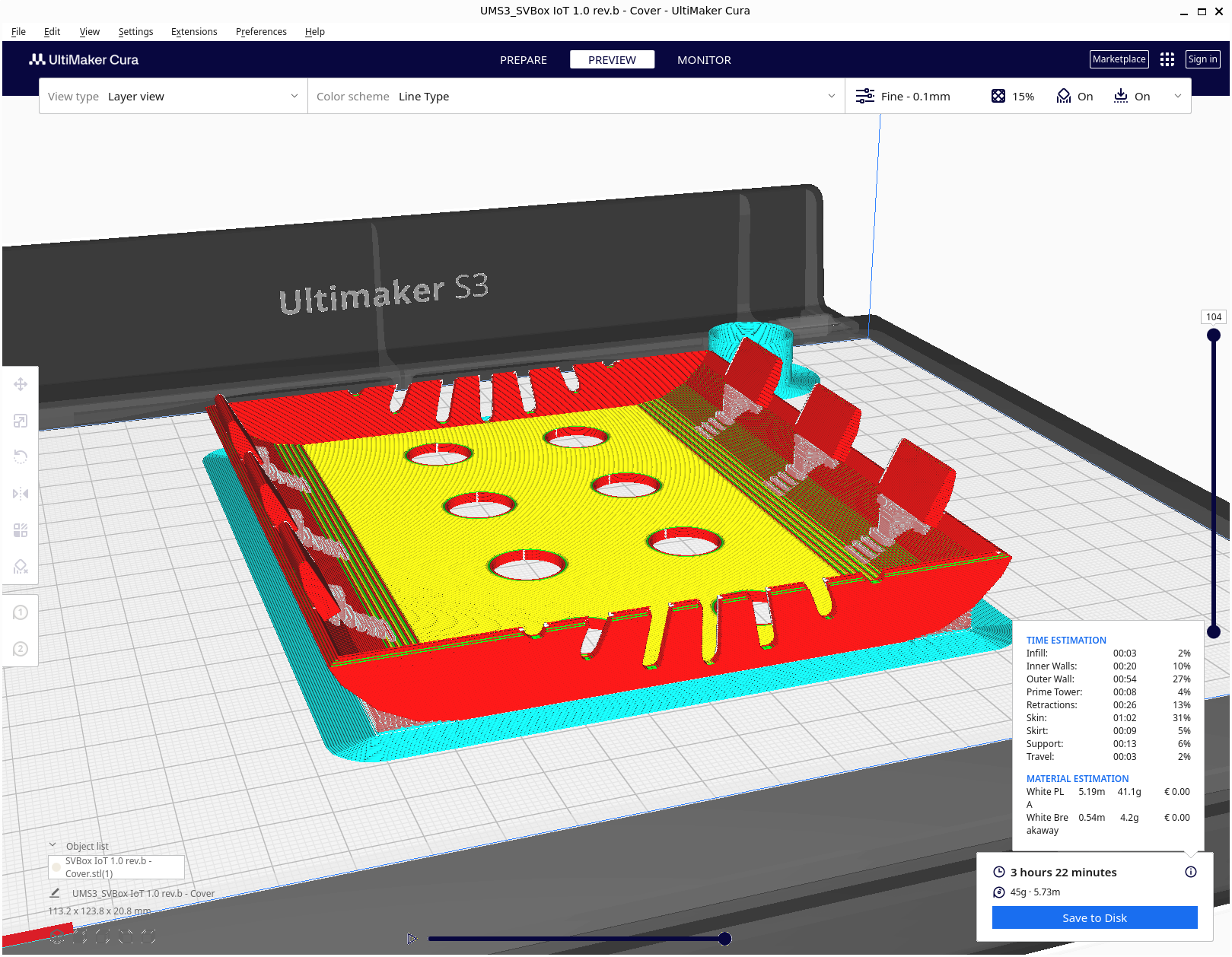

  • Cura Sliced: Render of the Cover sliced in Cura
• Cover + Panel: Print files for the Cover and Panel
  • Cover + Panel.3mf: 3mf file for Cura with print settings
  • Cover + Panel.ufp: ufp file from Cura with print settings
• SmartVanBox Case: The complete case for the SmartVanBox
  • SVBox IoT 1.0 rev.b.blend: The complete case 3d Model in a Blender file
